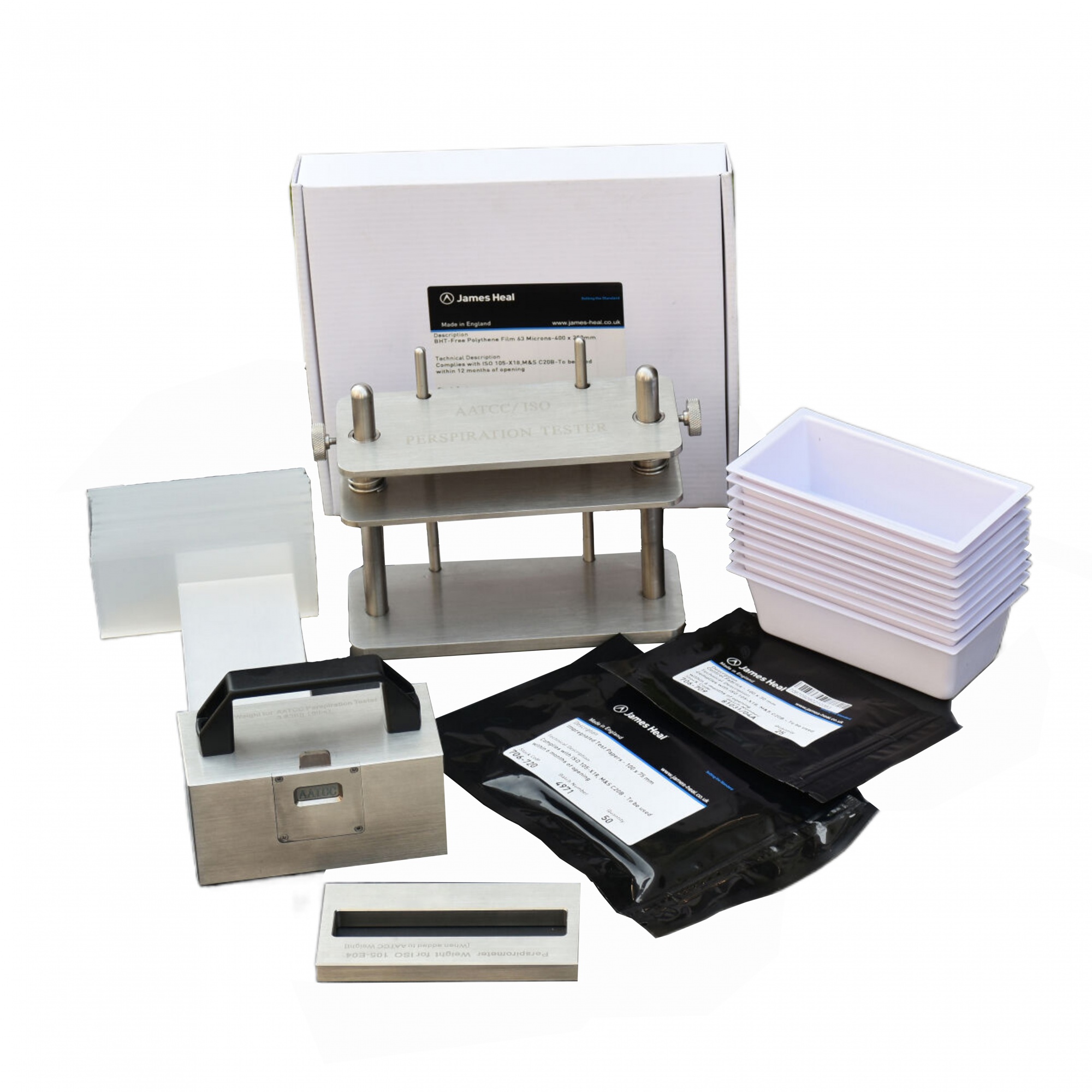

Perspiration Tester / Perspirometer XD-C11
A Perspiration Tester or Perspirometer is used for the color fastness test of various textile materials and textiles to perspiration and the determination of the color fastness performance of various colored and colored textiles to perspiration, water, and seawater
Application:
Perspiration Tester XD-C11 is mainly used to test the color fastness to perspiration of various textile materials and textiles and to determine the performance of various colored and colored textiles in terms of resistance to perspiration, water, seawater, saliva, chlorine bleaching, phenol yellow, etc.
To do a Perspiration Color Fastness Test in addition to the Perspirometer, but also need to match aprecise oven.
The Perspiration Tester XD-C11 consists of 1 stainless steel frame with 21 acrylic separator plates to hold 20 samples. Thus both ISO/AATCC test methods can be done at one time. 20 plastic basins are equipped for the pre-treatment of samples.
Features:
1. Constructed with 316L stainless steel, the steel frame and weights are highly resistant to acids, alkalis, and corrosion, ensuring long-term durability.
2. Load weights conform to AATCC standards, with customizable options available to meet user-specific requirements.
3. Precision-engineered components deliver smooth operation and excellent performance.
4. Trusted globally, ASTRAND Perspiration Testers are exported to 42 countries with a 12-year history of reliability and a strong reputation for quality.
Testing Principle:
A textile specimen, combined with one or two pieces of lining fabric, forms a test sample similar to the setup for color fastness to washing. The combined specimens are immersed in two different test solutions containing histidine hydrochloride under acidic and alkaline conditions until fully saturated.
After excess solution is removed, the test samples are subjected to specific pressure (as dictated by relevant test standards) in a controlled environment at (37 ± 2)°C for 4 hours. Once the drying process is completed, the discoloration of the specimen and staining of the liner are assessed using a gray scale card.
Standards:
Sweat-resistance: GB/T3922 AATCC15 ISO105
Seawater-resistance: GB/T5714 AATCC107 ISO105
Distilled water-resistance: GB/T5713 AATCC106 ISO105
Standard Accessories:
- Acrylic plate
- ISO weight
- AATCC weight
- Plastic box
Optional Accessories and Consumables:
- Acrylic plate
- Stainless steel stand
- Additional weights
- Plastic box
- pH meter
- Fabric scale
- AATCC/ISO Gray Scale for Staining
- AATCC/ISO Gray Scale for Color Change
- Lab wringer
- AATCC *** Multifiber Adjacent Fabric
- AATCC ***0 Multifiber Adjacent Fabric
- SDC DW Multifiber Adjacent Fabric
- SDC Single Fiber (available in cotton, wool, nylon 6.6, viscose, polyester, and acrylic)
Key specifications:
AATCC weight | 3.63kg(8LB) |
ISO weight | 4.08kg(9LB) |
Platen weight | 0.90kg（2LB） |
Dimensions | 165×75×145mm(L×W×H) |
