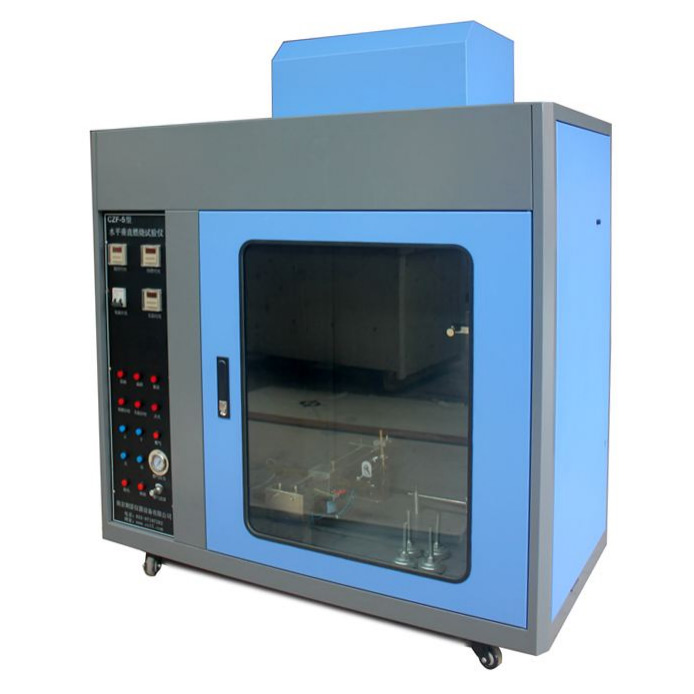

This flammability tester can be used for fire protection enclosures of mobile equipment with a total mass exceeding and not exceeding 18kg; fire protection enclosures of stationary equipment; materials placed in fire enclosures; V-0, V-1, V-2 , HB, 5V, HF-1, HF-2, HBF grade material or the flammability of foamed plastics is graded and assessed. It is suitable for the research of lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical affairs equipment, electrical connectors and accessories and other electrical and electronic products and their components. Production and quality inspection departments are also suitable for the industries of insulating materials, engineering plastics or other solid combustible materials.

Standards compliant:

FT-1, UL 94-2006, IEC 60695, IEC 60695-11-4, GB/T5169.1722-2008 (GB/T2408-2008/IEC60695-11-10:1999 ) UL94, ASTMD; ISO9772.3, 9773; IEC60707, IEC -10 (replaces ISO1210) and 11-20 (replaces ISO10351)

Technical parameter:

Lamps Bunsen burner tube diameter	9.5mm±0.5mm single gas mixed gas Bunsen burner
Length up from the main air intake or inlet	about 100mm
Lamp test inclination	0°, 20°, 45°65.90 manual switch, fast positioning
Flame height	20mm ± 2mm to 180mm ± 10mm adjustable
Performance parameters	the maximum stroke is about 150mm
Fuel gas	98% methane gas (reference gas), 37MJ/m3±1MJ/m3 natural gas can also be used
Burning and removal time	0-999.9s±0.1s (digital display can be preset) (touch screen control can be upgraded)
Burning time	0-999.9s±0.1s (digital display cannot be preset) (touch screen control can be upgraded)
Repeated burning times	1 to 9999 times (digital display can be preset)
Test area volume	0.5m3; 0.75m3 (can be customized according to customer requirements)
Dimensions (paint/stainless steel)	105cm×65cm×135cm
Power supply	0.5kW AC 220V
