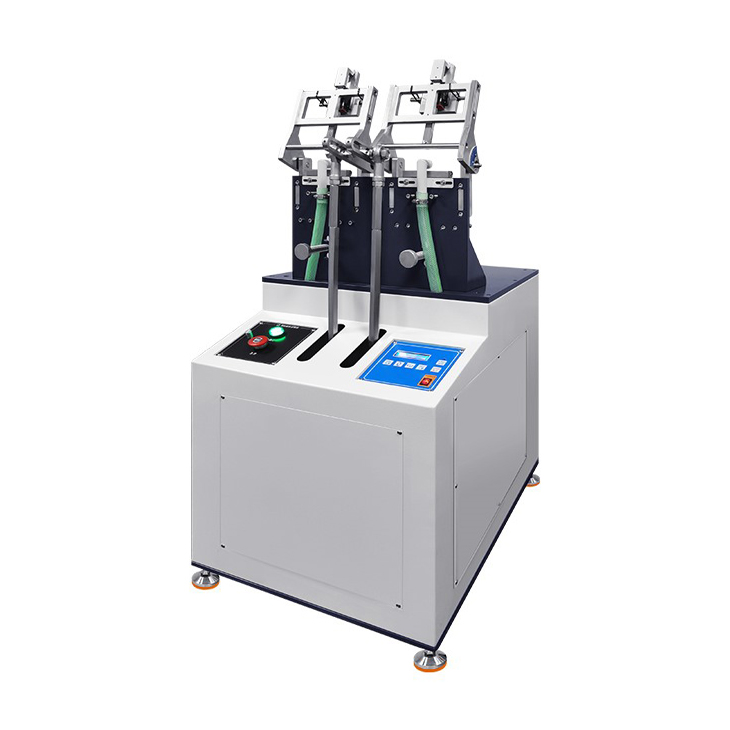

GB shoe folding test machine is mainly used for rubber, TPR soles, polyurethane and plastics and other materials and shoe soles folding, bending tests.Suitable for inspection and shoe soles (piece) folding properties at room temperature, the reason is the shoe or the sole security will be on the folding test machine, to a certain angle around a certain frequency March test, measure around the soles and around the song of a certain crack (mouth) and a plastic length, and observe the changes in th

Product Detail

Product description:

Main features:

The transmission adopts mechanical eccentric bearing, which is easy to maintain and has low noise;

The clamps are specially designed:

Upper clamp: Linear linear guide rail is adopted, which can be adapted to the clamping of special large-size and small-size shoes;

Lower clamp: By changing different positioning holes, it can adapt to the clamping requirements of different high and low toe caps. The locking device adopts an external rotation method, which is convenient to use.

Meet the standard: GB/T 3903.1

Specification:

Specimen fixture	2 shoes



Bending angle	0～55°(adjustable)
Test speed	230±10 times/min(adjustable)
Counter	LCD 8-digit liquid crystal display
Size (WDH)	53×69×140cm
Weight	about 150kg
Power supply	AC～220V50HZ
