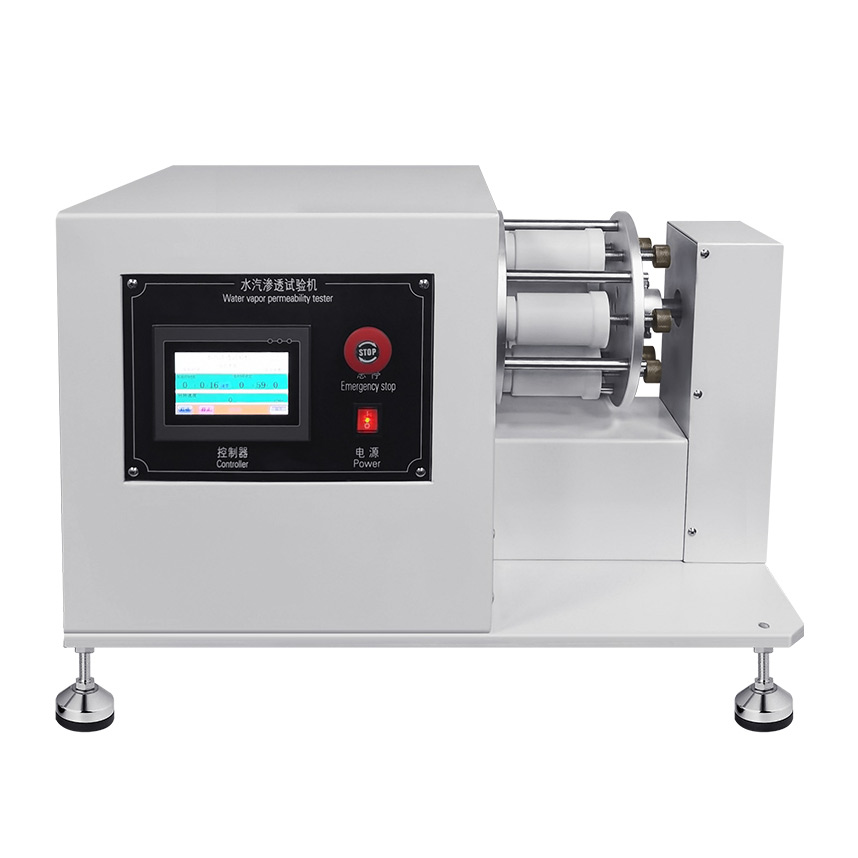

This machine is used to measure the water vapor permeability of various leather, artificial leather and textile materials. The principle is to fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant in the water vapor penetration testing machine, so as to use the test piece to separate the desiccant in the bottle from the air outside the bottle. , By starting the water vapor penetration tester to make the test bottle rotate and the fan that disturbs the air to rotate, the continuously moving desiccant continuously absorbs the water vapor passing through the test piece, and the desiccant absorbs water by weighing the test bottle within a certain period of time. The mass of the vapor is used to evaluate the water vapor permeability of the test material.

Standards:

Standards: The design of this instrument meets the requirements of SATRA TM172, EN ISO20344, GB/T20991 and other standards

Specification:

Diameter of test piece	￠34mm



Control method	touch screen control
Test plate speed	75±5 cycles/min
Bottle diameter	about ￠30mm
Fan blade size	90×75mm, 3 pieces
The number of test bottles that can be clamped by the bracket at the same time	6
Fan blade angle	120° inclined to each other
Blade speed	1400 cycles/min
Distance between fan blade and test piece	maximum 12mm
Test environment	temperature 20℃; relative humidity 65%
Size (WDH)	680×430×480mm
Weight	about 58kg
Power supply	AC～220V50Hz
