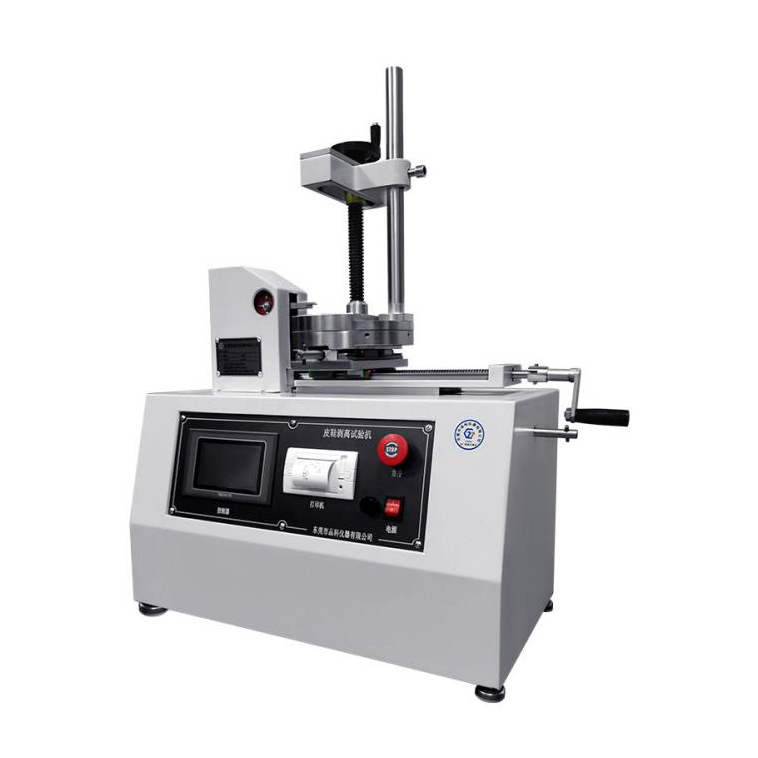

This machine is suitable for testing the peel strength between the sole and the upper of the finished shoe. The principle is to put the shoe last on the machine, and use a peeling knife to peel off the joint between the sole and the upper. The force required for peeling is measured as the peeling force. Calculate its peel strength. Up and down, left and right, front and rear distances can be adjusted to meet the test of shoes of different sizes.

Standards:

GB/T 3903.3, BS 1870.BS 4676.SATRA Tm404

Specification:

Knife-edge width	(20±0.2) mm and (10±0.2) mm



Capacity	2000N (accurate to 0.01N)
Test piece	Elastomer, linear deviation, indication deviation, and evaluation change are not more than 3%
Knife edge down speed	20±2mm/min, the rising and falling speed are adjustable
Spacing between positioning rod and tie rod	50-70 mm adjustable
Average lift range	40mm
Force value display mode	touch screen display, easy and intuitive to read
Force value induction	induction by high-precision sensor
Size (WDH)	650×330×800mm
Weight	about 50kg
Power supply	AC～220V50HZ
